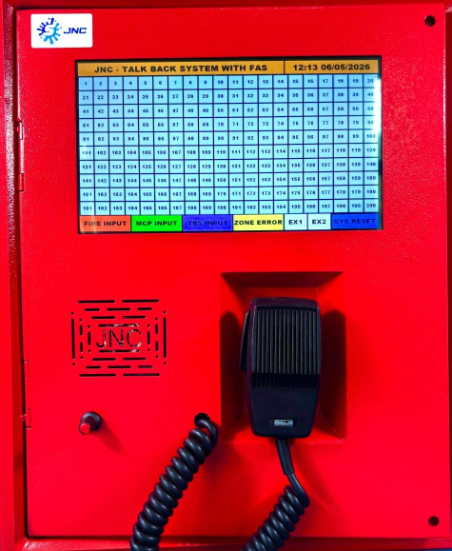

Addressable Talk Back System
Features
- This is the heart of the Talk Back System.
- Operates on 6 core loop in loop out.
- Interactive 7” inch display with touch screen control.
- If any zone got disconnected because of communication error or any other issues it will be displayed on the screen.
- It is to control incoming calls and outgoing announcement.
- PTR Button: Announcement Selector (Press to Talk, Release to Listen).
- Notifications: Group Zones, Individual, Multi, or All Zones.
- There is a way to add more zones to the Talk Back Speaker feature without disabling the current zone.
- In-built single fire evacuation message for fire integration.
- If a call received from any zone, It activates buzzer sound, colour change of particular zone and location will be displayed on the screen.
- Priority announcement level is as 1. Fire alert 2. Announcement.
- In Standard controller has 3 loops.
Mechanical Specifications
| Dimension | H:300mm x W:400mm x D:140mm |
|---|---|
| Weight | approx. 4 kg |
| Colour | White |
| Type | Wall Mountable |
Electrical Specifications
| Power supply | 230V, 50Hz, AC Supply |
|---|---|
| Current Consumption | <0.5 AMP |
| Distortion | <0.5% |
| Frequency response | 150 Hz – 10 kHz |
